David Greco's Handling, Driving and Setup Q&A (?)

@taattor It's actually pretty interesting how they wear differently. I'm gonna split them up, because there's a lot of data here.

C1
<WearRate value="0.02961" />

Obviously the rate at which the tire wears, lower is better.

<WearGrip numVertices="17">
<SplineElement x="0.0000" y="1.0000" />
<SplineElement x="0.0600" y="0.9975" />
<SplineElement x="0.1300" y="0.9963" />
<SplineElement x="0.1900" y="0.9954" />
<SplineElement x="0.2500" y="0.9944" />
<SplineElement x="0.3100" y="0.9935" />
<SplineElement x="0.3800" y="0.9925" />
<SplineElement x="0.4400" y="0.9916" />
<SplineElement x="0.5000" y="0.9906" />
<SplineElement x="0.5600" y="0.9897" />
<SplineElement x="0.6300" y="0.9862" />
<SplineElement x="0.6900" y="0.9807" />
<SplineElement x="0.7500" y="0.9712" />
<SplineElement x="0.8100" y="0.9577" />
<SplineElement x="0.8800" y="0.9402" />
<SplineElement x="0.9400" y="0.9187" />
<SplineElement x="1.0000" y="0.8772" />
</WearGrip>

You can see the C1 compound wears very linearly right until the 56% mark, then it starts hitting the cliff. This tire isn't used that often, but if you're at somewhere like Barcelona, this would be the hard compound. You'd definitely want to switch around 65% at the latest.

@taattor ...Continued-

C2

<WearRate value="0.0423" />

Quite a significant jump in wear rate from the C1. About a 43% increase.

<WearGrip numVertices="17">
<SplineElement x="0.0000" y="1.0000" />
<SplineElement x="0.0600" y="0.9970" />
<SplineElement x="0.1300" y="0.9865" />
<SplineElement x="0.1900" y="0.9840" />
<SplineElement x="0.2500" y="0.9815" />
<SplineElement x="0.3100" y="0.9790" />
<SplineElement x="0.3800" y="0.9765" />
<SplineElement x="0.4400" y="0.9740" />
<SplineElement x="0.5000" y="0.9715" />
<SplineElement x="0.5600" y="0.9690" />
<SplineElement x="0.6300" y="0.9630" />
<SplineElement x="0.6900" y="0.9550" />
<SplineElement x="0.7500" y="0.9430" />
<SplineElement x="0.8100" y="0.9270" />
<SplineElement x="0.8800" y="0.9070" />
<SplineElement x="0.9400" y="0.8830" />
<SplineElement x="1.0000" y="0.8390" />
</WearGrip>

This tire wears slightly differently to the C1. It similarly loses very little grip at first, but then quickly has a massive drop from 6% to 13%, before settling into a linear curve again. Once again you'll want to switch tires around the 60% mark.

@taattor Hope this isn't boring, they're all pretty similar.

C3

<WearRate value="0.05499" />

86% over C1, 30% over C2.

<WearGrip numVertices="17">
<SplineElement x="0.0000" y="1.0000" />
<SplineElement x="0.0600" y="0.9960" />
<SplineElement x="0.1300" y="0.9829" />
<SplineElement x="0.1900" y="0.9782" />
<SplineElement x="0.2500" y="0.9735" />
<SplineElement x="0.3100" y="0.9688" />
<SplineElement x="0.3800" y="0.9641" />
<SplineElement x="0.4400" y="0.9594" />
<SplineElement x="0.5000" y="0.9547" />
<SplineElement x="0.5600" y="0.9500" />
<SplineElement x="0.6300" y="0.9419" />
<SplineElement x="0.6900" y="0.9318" />
<SplineElement x="0.7500" y="0.9177" />
<SplineElement x="0.8100" y="0.8996" />
<SplineElement x="0.8800" y="0.8775" />
<SplineElement x="0.9400" y="0.8514" />
<SplineElement x="1.0000" y="0.8053" />
</WearGrip>

Same behavior as the C2, but just more. Once again, 60% is the time to switch.

@taattor I'll just provide the data, there's not much to say.

C4

<WearRate value="0.06768" />

129% - C1, 60% - C2, 23% - C3. This really isn't that far off the C3.

<WearGrip numVertices="17">
<SplineElement x="0.0000" y="1.0000" />
<SplineElement x="0.0600" y="0.9955" />
<SplineElement x="0.1300" y="0.9800" />
<SplineElement x="0.1900" y="0.9730" />
<SplineElement x="0.2500" y="0.9660" />
<SplineElement x="0.3100" y="0.9590" />
<SplineElement x="0.3800" y="0.9520" />
<SplineElement x="0.4400" y="0.9450" />
<SplineElement x="0.5000" y="0.9380" />
<SplineElement x="0.5600" y="0.9310" />
<SplineElement x="0.6300" y="0.9208" />
<SplineElement x="0.6900" y="0.9086" />
<SplineElement x="0.7500" y="0.8924" />
<SplineElement x="0.8100" y="0.8722" />
<SplineElement x="0.8800" y="0.8480" />
<SplineElement x="0.9400" y="0.8198" />
<SplineElement x="1.0000" y="0.7716" />
</WearGrip>

@taattor Final one.

C5

<WearRate value="0.0752" />

154% - C1

78% - C2

37% - C3

11% - C4.

<WearGrip numVertices="17">
<SplineElement x="0.00" y="1.0000" />
<SplineElement x="0.06" y="0.9950" />
<SplineElement x="0.13" y="0.9775" />
<SplineElement x="0.19" y="0.9680" />
<SplineElement x="0.25" y="0.9585" />
<SplineElement x="0.31" y="0.9490" />
<SplineElement x="0.38" y="0.9395" />
<SplineElement x="0.44" y="0.9300" />
<SplineElement x="0.50" y="0.9205" />
<SplineElement x="0.56" y="0.9110" />
<SplineElement x="0.63" y="0.8990" />
<SplineElement x="0.69" y="0.8850" />
<SplineElement x="0.75" y="0.8670" />
<SplineElement x="0.81" y="0.8450" />
<SplineElement x="0.88" y="0.8190" />
<SplineElement x="0.94" y="0.7890" />
<SplineElement x="1.00" y="0.7390" />
</WearGrip>

What do you mean?  You can seen? I just see numbers lots and lots off numbers.

Reminds of the bit in matrix where the guy looking at the screens off matrix code and he says I don’t notice it anymore. I just see redhead, blonde, brunette.

@ActuallyImJulie big thanks 😊

Yeah I’m visually stimulated 👍

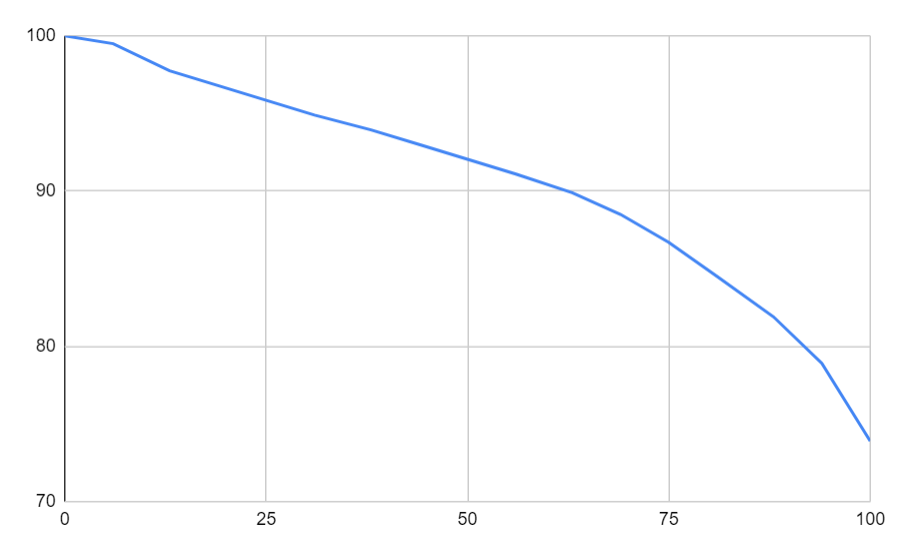

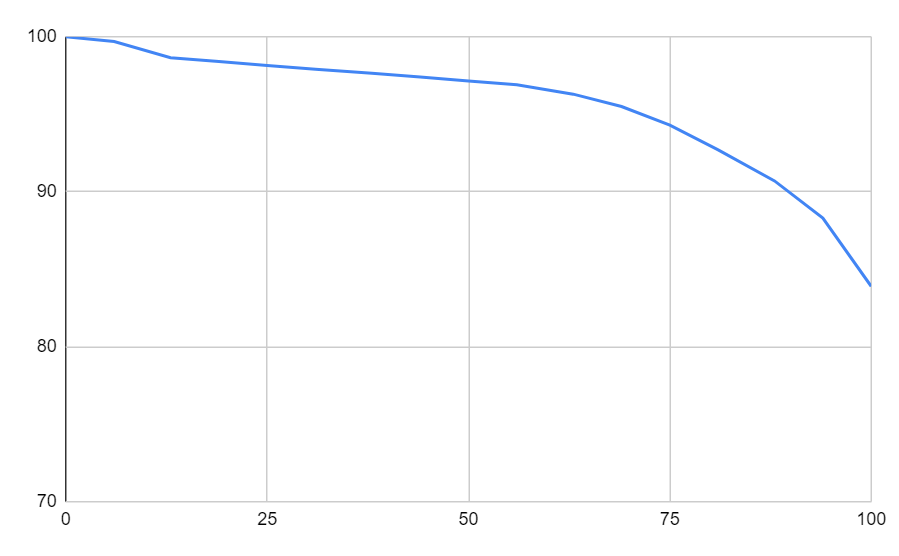

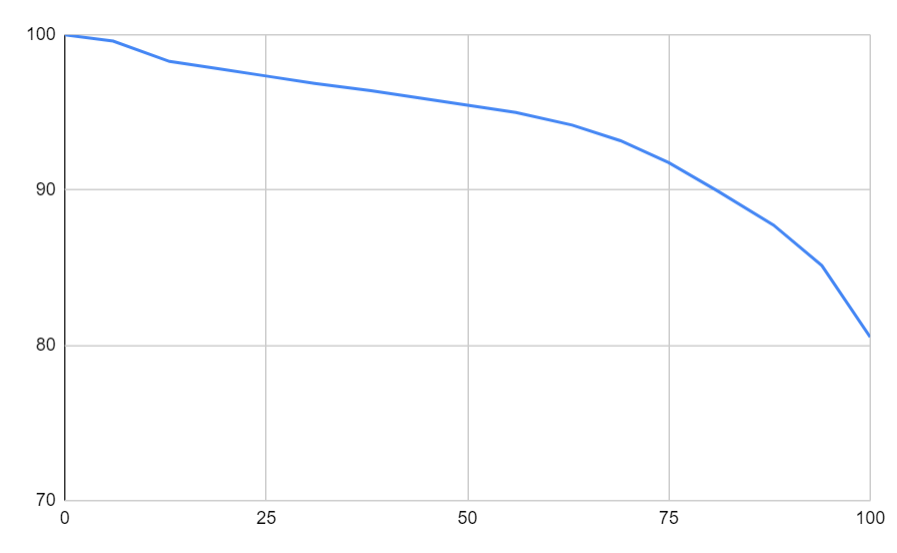

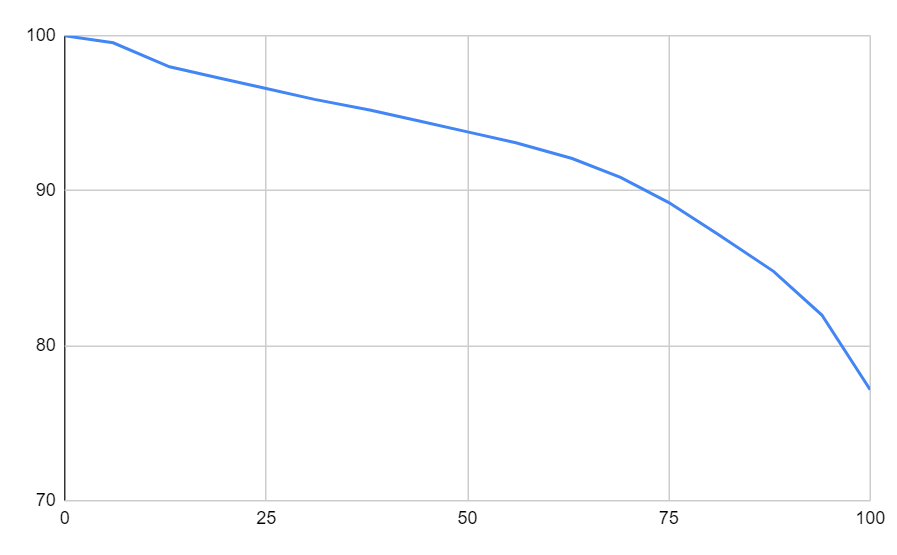

@ScarDuck14 Well it took some time, since I'm easily distracted, but got there in the end. Vertical is grip, horizontal is wear.

C1

C2

C3

C4

C5

@ActuallyImJulie @Thank you for that.  As you took the time I’ll take the time to read and understand it.  But honestly it’s wasted on me.  If car feels pointy at the front and grippy at the rear.   Providing I’m not massively off the pace or predicted to melt my tyres within a lap. I go with it.

Im a caveman.  I don’t read instructions I don’t ask for directions.   Quick start guides take to long.   Statistics are great and I love cricket and watched money ball a thousand times.   but stats don’t understand what feels  good.  😂  when a car feels good it gives you confidence to attack.

Always do.  Don’t mean to come across as a know it all because of this because I don’t. But I put over 900 hours into my team last year. Soon as car maxed I restarted a new my team career. So always drove a fat dog off a car.  Only ever drove a Mercedes and a red bull for a few laps. So after to many hours.  Knowing when tyres were worn or just hot became second nature. I very rarely put up the tyres temp panel on the mfd.  even though as I like a pointy front I would often melt the fronts.   With the wear in general. Wear starts effecting all parts between 50-60%

It looks like everyone is focused on the pressures regarding tyre temp/wear management, which is fine, but I'm wondering what I can do with the rest of the car.

Geometry, diffs, aero and springs for example... they also effect tyre temps and wear rates... so what tips would be recommended in those areas to help with temps management while also having a quick car @DavidG53?

@DavidG53  just a quick follow up.  Gearbox with  16% durability improvement has  done 61 laps and has 20% wear.  Ice has 14%   And I have yet to start qualifying at Jeddah.

Rough guess at current rate I’m  gunna going through a ton off gearboxes.  😭 I’m already short shifting 5,6 and 7. I pride myself on mechanical sympathy.   😀

@BankaiBullett  softer  mechanical grip settings.  Namely ARB and Stiffness.  Brake pressures and balance.  But to soft and you sacrifice responsiveness.   The default settings are and should be the base off your setup.   I’ll soften the front in general and stiffen the rear for good rotation.   As I use pad reduce pressure to aid trail braking.  And run equal or inverted wings.  Where I point that’s where I go.

---

@ActuallyImJulie wrote:

@ScarDuck14 Well it took some time, since I'm easily distracted, but got there in the end. Vertical is grip, horizontal is wear.

C1

C2

C3

C4

C5

---

@ActuallyImJulie Did this same thing last game (actually only with text and not like this with the graphs) and now seeing that the wear grip values weren't changed at all from last game, only that C4 is now Supersofts and C5 Ultrasofts, I could quickly make this relative grip comparison again:

F1 22 WEAR GRIP

0% wear grip:
C5=0.98
C4=0.96
C3=0.94
C2=0.92
C1=0.90

6% wear
C5=0.9751
C4=0.95568
C3=0.93624
C2=0.91724
C1=0.89775

13% wear
C5=0.95795
C4=0.9408
C3=0.923926
C2=0.90758
C1=0.89667

19% wear
C5=0.94864
C4=0.93408
C3=0.919508
C2=0.90528
C1=0.89586

25% wear
C5=0.93933
C4=0.92736
C3=0.91509
C2=0.90298
C1=0.89496

31% wear
C5=0.93002
C4=0.92064
C3=0.910672
C2=0.90068
C1=0.89415

38% wear
C5=0.92071
C4=0.91392
C3=0.906254
C2=0.89838
C1=0.89325

44% wear
C5=0.9114
C4=0.9072
C3=0.901836
C2=0.89608
C1=0.89244

50% wear
C5=0.90209
C4=0.90048
C3=0.897418
C2=0.89378
C1=0.89154

56% wear
C5=0.89278
C4=0.89376
C3=0.893
C2=0.89148
C1=0.89073

63% wear
C5=0.88102
C4=0.883968
C3=0.885386
C2=0.88596
C1=0.88758

69% wear
C5=0.8673
C4=0.872256
C3=0.875892
C2=0.8786
C1=0.88263

PUNCTURE REGION
75% wear
C5=0.84966
C4=0.856704
C3=0.862638
C2=0.86756
C1=0.87408

81% wear
C5=0.8281
C4=0.837312
C3=0.845624
C2=0.85284
C1=0.86193

88% wear
C5=0.80262
C4=0.81408
C3=0.82485
C2=0.83444
C1=0.84618

94% wear
C5=0.77322
C4=0.787008
C3=0.800316
C2=0.81236
C1=0.82683

100% wear
C5=0.72422
C4=0.740736
C3=0.756982
C2=0.77188
C1=0.78948
