Forum Discussion

DBWoodynz's avatar
DBWoodynz
10 years ago
Solved

[Guide] to identify network issues for Swtor

*Netstat/Pingpath/Tracert/Speedtest.net/PingPlotter Netstat OK with your game open and running please alt tab back to your desktop. Please click Start and in the search line down the bottom ...
  • proxos666's avatar
    proxos666
    10 years ago

    I consider this a Good Guide, over the years it has certainly helped narrow down issues in particular local network issues with SWTOR.

    I would be quite happy to point people to these directions, to look at the results.

    Beats a thread that says "I have Lag" and all the replies are "Me Too"

    problem is not all causes of lag are equal.

    And unless any tests are run and if it is consistent lag then it wont get fixed without looking for a cause.

    To Simplify testing I would just use the below IP addresses initially

    • If you play on an East Coast server: 159.153.92.28
    • If you play on a West Coast server: 159.153.68.252
    • If you play on a European server: 159.153.72.252

    As detailed here

Anonymous's avatar
Anonymous
10 years ago
Spoiler

H:\WINDOWS\system32>netstat -n -p tcp -b

Active Connections

Proto Local Address Foreign Address State
TCP 127.0.0.1:57967 127.0.0.1:57968 TIME_WAIT
TCP 127.0.0.1:57970 127.0.0.1:57971 TIME_WAIT
TCP 127.0.0.1:57976 127.0.0.1:57977 TIME_WAIT
TCP 192.168.0.104:54662 74.125.136.188:5228 ESTABLISHED
[chrome.exe]
TCP 192.168.0.104:54666 157.55.236.122:443 ESTABLISHED
[Explorer.EXE]
TCP 192.168.0.104:54774 108.168.151.6:443 ESTABLISHED
[chrome.exe]
TCP 192.168.0.104:56241 193.226.178.214:80 ESTABLISHED
[chrome.exe]
TCP 192.168.0.104:56513 193.226.178.214:80 ESTABLISHED
[chrome.exe]
TCP 192.168.0.104:56596 82.77.159.242:443 TIME_WAIT
TCP 192.168.0.104:57865 95.131.122.232:443 TIME_WAIT
TCP 192.168.0.104:57874 72.30.196.161:443 TIME_WAIT
TCP 192.168.0.104:57880 66.196.116.112:443 TIME_WAIT
TCP 192.168.0.104:57915 216.58.209.194:443 TIME_WAIT
TCP 192.168.0.104:57917 82.77.159.118:443 TIME_WAIT
TCP 192.168.0.104:57923 82.77.159.104:443 ESTABLISHED
[chrome.exe]
TCP 192.168.0.104:57962 159.153.77.143:20077 TIME_WAIT
TCP 192.168.0.104:57963 159.153.77.143:20078 TIME_WAIT
TCP 192.168.0.104:57973 159.153.77.205:8995 TIME_WAIT
TCP 192.168.0.104:57974 159.153.77.195:20063 ESTABLISHED
[swtor.exe]
TCP 192.168.0.104:57975 159.153.77.195:20064 ESTABLISHED
[swtor.exe]
TCP 192.168.0.104:57981 193.226.178.214:443 ESTABLISHED
[chrome.exe]

H:\WINDOWS\system32>netstat -n -p tcp -b

Active Connections

Proto Local Address Foreign Address State
TCP 127.0.0.1:57967 127.0.0.1:57968 TIME_WAIT
TCP 127.0.0.1:57970 127.0.0.1:57971 TIME_WAIT
TCP 127.0.0.1:57976 127.0.0.1:57977 TIME_WAIT
TCP 192.168.0.104:54662 74.125.136.188:5228 ESTABLISHED
[chrome.exe]
TCP 192.168.0.104:54666 157.55.236.122:443 ESTABLISHED
[Explorer.EXE]
TCP 192.168.0.104:54774 108.168.151.6:443 ESTABLISHED
[chrome.exe]
TCP 192.168.0.104:56241 193.226.178.214:80 ESTABLISHED
[chrome.exe]
TCP 192.168.0.104:56513 193.226.178.214:80 ESTABLISHED
[chrome.exe]
TCP 192.168.0.104:56596 82.77.159.242:443 TIME_WAIT
TCP 192.168.0.104:57865 95.131.122.232:443 TIME_WAIT
TCP 192.168.0.104:57874 72.30.196.161:443 TIME_WAIT
TCP 192.168.0.104:57880 66.196.116.112:443 TIME_WAIT
TCP 192.168.0.104:57915 216.58.209.194:443 TIME_WAIT
TCP 192.168.0.104:57917 82.77.159.118:443 TIME_WAIT
TCP 192.168.0.104:57923 82.77.159.104:443 ESTABLISHED
[chrome.exe]
TCP 192.168.0.104:57962 159.153.77.143:20077 TIME_WAIT
TCP 192.168.0.104:57963 159.153.77.143:20078 TIME_WAIT
TCP 192.168.0.104:57973 159.153.77.205:8995 TIME_WAIT
TCP 192.168.0.104:57974 159.153.77.195:20063 ESTABLISHED
[swtor.exe]
TCP 192.168.0.104:57975 159.153.77.195:20064 ESTABLISHED
[swtor.exe]
TCP 192.168.0.104:57981 193.226.178.214:443 ESTABLISHED
[chrome.exe]

H:\WINDOWS\system32>netstat -n -p tcp -b

Active Connections

Proto Local Address Foreign Address State
TCP 127.0.0.1:57967 127.0.0.1:57968 TIME_WAIT
TCP 127.0.0.1:57970 127.0.0.1:57971 TIME_WAIT
TCP 127.0.0.1:57976 127.0.0.1:57977 TIME_WAIT
TCP 192.168.0.104:54662 74.125.136.188:5228 ESTABLISHED
[chrome.exe]
TCP 192.168.0.104:54666 157.55.236.122:443 ESTABLISHED
[Explorer.EXE]
TCP 192.168.0.104:54774 108.168.151.6:443 ESTABLISHED
[chrome.exe]
TCP 192.168.0.104:56241 193.226.178.214:80 ESTABLISHED
[chrome.exe]
TCP 192.168.0.104:56513 193.226.178.214:80 ESTABLISHED
[chrome.exe]
TCP 192.168.0.104:56596 82.77.159.242:443 TIME_WAIT
TCP 192.168.0.104:57865 95.131.122.232:443 TIME_WAIT
TCP 192.168.0.104:57874 72.30.196.161:443 TIME_WAIT
TCP 192.168.0.104:57880 66.196.116.112:443 TIME_WAIT
TCP 192.168.0.104:57915 216.58.209.194:443 TIME_WAIT
TCP 192.168.0.104:57917 82.77.159.118:443 TIME_WAIT
TCP 192.168.0.104:57923 82.77.159.104:443 ESTABLISHED
[chrome.exe]
TCP 192.168.0.104:57962 159.153.77.143:20077 TIME_WAIT
TCP 192.168.0.104:57963 159.153.77.143:20078 TIME_WAIT
TCP 192.168.0.104:57973 159.153.77.205:8995 TIME_WAIT
TCP 192.168.0.104:57974 159.153.77.195:20063 ESTABLISHED
[swtor.exe]
TCP 192.168.0.104:57975 159.153.77.195:20064 ESTABLISHED
[swtor.exe]
TCP 192.168.0.104:57981 193.226.178.214:443 ESTABLISHED
[chrome.exe]

H:\WINDOWS\system32>-pathping 193.226.178.214
'-pathping' is not recognized as an internal or external command,
operable program or batch file.

H:\WINDOWS\system32>pathping -n 193.226.178.214

Tracing route to 193.226.178.214 over a maximum of 30 hops

0 192.168.0.104
1 192.168.0.1
2 10.0.0.1
3 * * *
Computing statistics for 50 seconds...
Source to Here This Node/Link
Hop RTT Lost/Sent = Pct Lost/Sent = Pct Address
0 192.168.0.104
0/ 100 = 0% |
1 0ms 0/ 100 = 0% 0/ 100 = 0% 192.168.0.1
100/ 100 =100% |
2 --- 100/ 100 =100% 0/ 100 = 0% 10.0.0.1

Trace complete.

H:\WINDOWS\system32>pathping -n 159.153.77.195

Tracing route to 159.153.77.195 over a maximum of 30 hops

0 192.168.0.104
1 192.168.0.1
2 10.0.0.1
3 * * *
Computing statistics for 50 seconds...
Source to Here This Node/Link
Hop RTT Lost/Sent = Pct Lost/Sent = Pct Address
0 192.168.0.104
0/ 100 = 0% |
1 0ms 0/ 100 = 0% 0/ 100 = 0% 192.168.0.1
100/ 100 =100% |
2 --- 100/ 100 =100% 0/ 100 = 0% 10.0.0.1

Trace complete.

H:\WINDOWS\system32>tracert 193.226.178.214

Tracing route to 193.226.178.214 over a maximum of 30 hops

1 <1 ms <1 ms <1 ms 192-168-0-1.rdsnet.ro [192.168.0.1]
2 2 ms 1 ms 1 ms 10.0.0.1
3 * * * Request timed out.
4 5 ms 5 ms 5 ms xr02.bucuresti.rdsnet.ro [213.154.101.219]
5 6 ms 5 ms 5 ms 81.196.193.198
6 6 ms 5 ms 6 ms r02-as0-0.ard2.ro.gtsce.net [85.9.9.17]
7 5 ms 5 ms 6 ms r11-Ge1-11.buh7.ro.gtsce.net [85.9.9.30]
8 6 ms 5 ms 5 ms 193.226.178.214

Trace complete.

H:\WINDOWS\system32>

I keep getting disconnected from the game, I've tried a lot of stuff from the forums, nothing seems to help, I've bought the CE for SWTOR, and even played a fair bit at launch and a bit after. I would like to try the new content and subscribe, but I have to get the game to work first, please help. How can I maintain a steady connection?

I would like to mention that I have a roommate who has a separate PC, but uses the same connection to the internet (we are both using wired connections to the same router). He doesn't get disconnected from the game, but I do.

After I connect to the server and begin playing with my character I get disconnected after a few minutes. It seems to get me disconnected faster in the evening and less fast in the morning, but still at most I can play around 5-10 mins before getting DC'ed. I am running windows 10, my drivers are up to date. I've played other games and MMOs and none have this issue. Please Help.

Kind Regards,

Ace

  • DBWoodynz's avatar
    DBWoodynz
    10 years ago

    @Ace_Hammerheart

    Morning, nice work on looking for this stuff...

    you did notice that hop 1 192.168.0.1 has 100% packet loss yes?

     Odds are your firewall settings are going Nom Nom Nom on your game signal like the cookie monster with chocolate chip..

    Jump into your Router and see if you can loosen up it's death grip on your connection; don't forget Windows has it's own firewall also.

    *incase you have not seen http://answers.ea.com/t5/STAR-WARS-The-Old-Republic/Guide-quot-How-to-install-Swtor-Correctly-and-address-Windows-10/td-p/4851036

    *Don't forget the Speedtest.net part of those tests, lots of great information to be found with that.

    With regards to testing your individual ports to save you some time...

    This is what you want open....
    http://www.swtor.com/support/helpcenter/2010

    This will walk you through step by step.
    http://portforward.com/

    http://portforward.com/help/portcheck.htm
    *This is the tool of tools, checks with ease and clarity; I find putting on socks harder then this.

    • Anonymous's avatar
      Anonymous
      10 years ago

      @DBWoodynz

      Hello, thanks for helping out.

      Yes of course I noticed the packet loss, I've got no clue what to do about it. My roommate uses the same connection and plays just fine.

      I've configured the firewall as per the instructions, but I'm pretty sure it is not the issue, since I've tried to run the game with firewall turned OFF, it would impede the connection if it was turned off, would it? Same disconnections with firewall OFF.

      I've tried to port forward before, I've repeated the procedure now with some help from searching the internet. This is where I have an issue, but again if my roommate is playing connected to the same router I don't think this is causing any problem. I've added a screenshot below to let you see if it was done right.

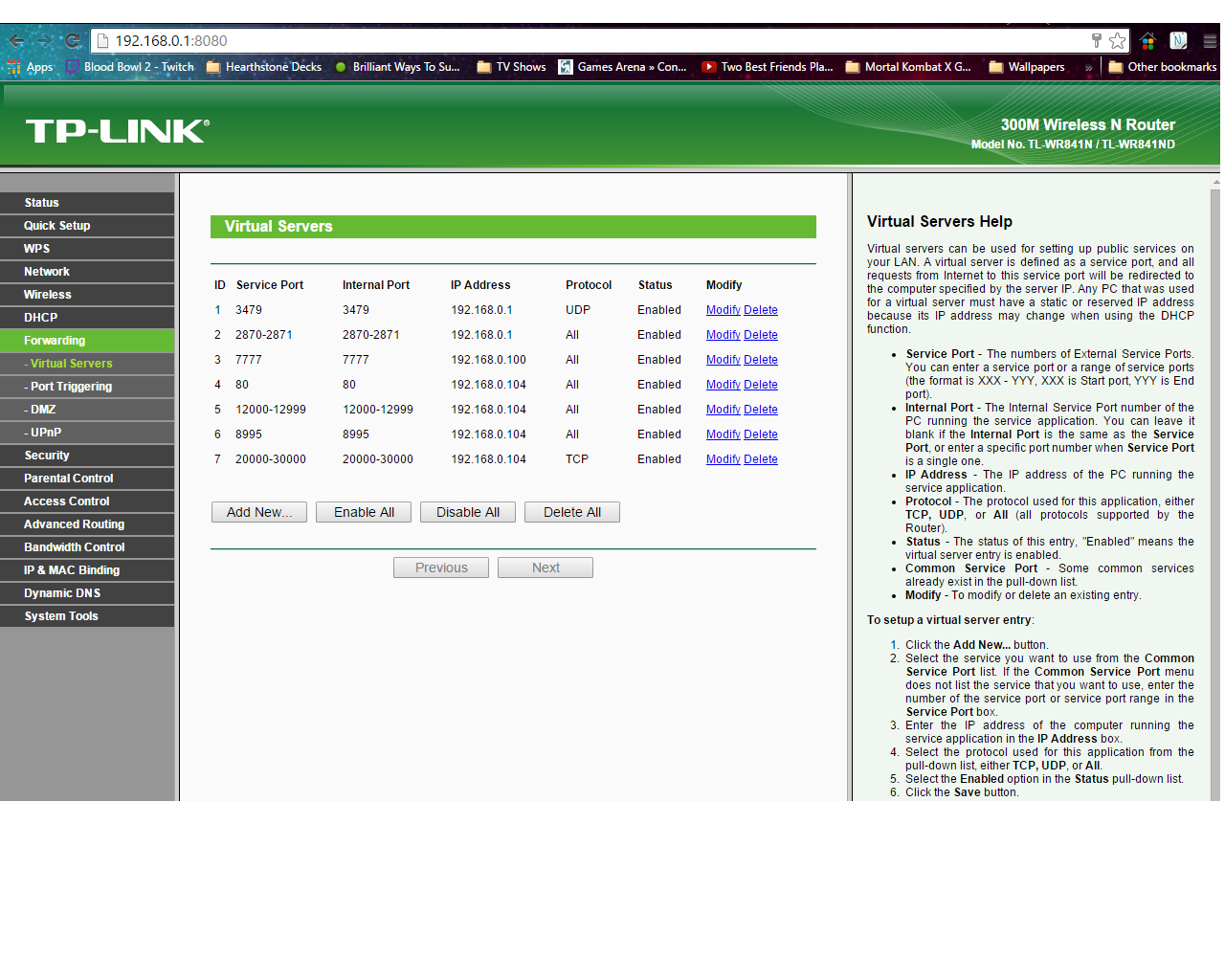

      Port Forwarding Screenshot

      I've done speedtests to Dublin since I am from Europe and that's where the servers are AFAIK. It was over 90MB for both download and upload.

      Speedtest result

      BTW I want to thank you @DBWoodynz and @proxos666 you guys are the first humans who helped me in any way, I've been trying to get this thing to work for a very very long time.

      All the best,

      Ace Hammerheart

      • proxos666's avatar
        proxos666
        Hero+
        10 years ago

        @Ace_Hammerheart

        hate to step on toes , remove all the port forwards , this will also affect your roommate, I gather he plays fine

        Open a command prompt as administrator and type

        netsh winsock reset

        see if that has any affect on the disconnects

        Edit - OOPs sorry about your post
