GPU doesnt use full power ingame

Sounds like you guys need to get your MSI sorted. Not the motherboard brand, Message Signal Interrupts. Windows by default ships with line-based interrupts active usually for most things by default, a terribly inneffcient and old school way of devices and peripherals communicating with your CPU. It's called Line based because it literally processes them one at a time in a line or queue. MSI is the new much more efficient method able to perform numerous requests simultaneously. The difference can be staggering. Battlefield 6 at Medium settings was literally unplayable due to input lag and video lag on my system till I optimised this using MSI Utility V3. Just type that into Google and its free to use. You probably need to be shown how to get this right, it involves understanding device manager and enabling the same priority on the device and the PCI express port that homes it, to ensure no bottlenecks, but rather than explain it myself, there's heaps of videos on Google or check out ASUS ROG forums for getting the hang of it. Basically use MSI Utility V3 to turn on this functionality and then assign a priority. I can now run the game in overkill at close to 140fps no input lag its a game changer. I have set my GPU, mouse and keyboard, game M2 SSD drives and audio to high priority, and the associated PCI Express ports that house these devices. Wham no  lag no stutter, no drama.

NL_Bob_DTC​ wrote:

when i lower the settings ingame the SIM stays on 60 at all time. Is that normal?

60fps SIM is misleading because it simply means that's the minimum FPS you need.

You can calculate the actual fps of SIM using this equation.

1000ms ÷ SIM = FPS

For example, if SIM is 8ms,

1000ms ÷ 8ms = 125fps

There's 1000 millisecond in one second. SIM is updating every 8ms. Therefore SIM is updating 125 times per second.

You can calculate the frame rate for CPU and GPU using the same equation. You can also calculate the server's frame rate from server frame time (SFT) in the network performance graph.

NL_Bob_DTC​ The Asus motherboard user manual recommends installing the memory sticks into slots A2 and B2 for optimal dual channel mode performance.

You should see a noticeable performance boost in memory bandwidth. Resulting in better FPS.

OskooI_007​ my memory is still in single channel mode. i dont know how to change that. i have 2 sticks of ddr5 16gb memory

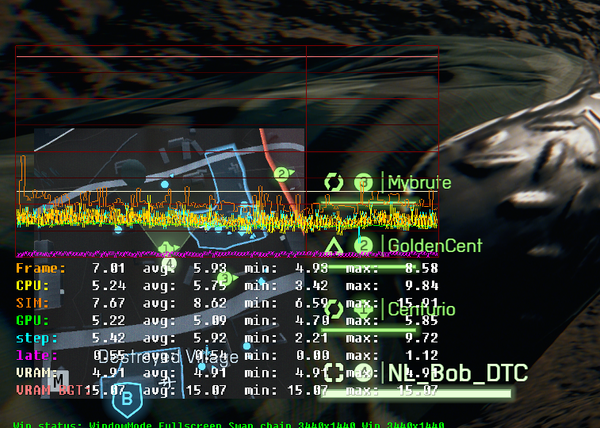

this is what the graph says what the good FPS and smooth gameplay

OskooI_007​ crackerjakr​ PvtJohnTowle​ i cannot thank you guys enough.

Ive changed the following settings in the bios:
Turbo game mode > Enabled
EXPO > Enabled

And the FPS is back and stable between 140/160 without frame gen.
i dont know why the thing where changed between the update.

You guys are really helpfull!!!!!!!

PvtJohnTowle​ when i lower the settings ingame the SIM stays on 60 at all time. Is that normal?

OskooI_007​ crackerjakr​

Label    Meaning    Reading    What It Suggests
CPU    Render thread (game engine preparing frames)    107 fps / 9.1 ms    ✅ Fine — your CPU is capable of preparing ~107 fps worth of work
SIM    Simulation thread (game logic, AI, physics, networking)    60 fps / 11.2 ms    ⚠️ Bottleneck — this is the slowest thread, limiting your overall game frame rate
GPU    Graphics rendering (what the GPU can draw)    142 fps / 7.0 ms    ✅ Plenty of headroom — GPU is waiting for CPU/Sim thread
MP/s    Multiplayer simulation throughput    243.3    Normal for network data rate; not an issue

⚠️ What the Problem Is

Your SIM (simulation) thread is lagging behind the GPU and render thread.
That means:

Your GPU could render 142 fps,

Your CPU render thread could feed ~107 fps,

But your simulation thread can only handle 60 fps,
which makes the entire game limited to ~60 fps.

This is a CPU-side bottleneck, specifically in the game’s simulation code, not GPU rendering.
It often happens in large Battlefield matches (especially 64+ player servers) or when:

You’re running high simulation load (lots of explosions, AI, physics).

The game thread is on a single CPU core that’s getting hammered.

You’re using DirectX 12, which can make frame pacing more dependent on simulation time.

🧩 How to Fix or Improve It

Try these steps:

Enable DX12 (if not already) — or switch back to DX11 to see if it improves thread scheduling.

In BIOS or Windows, make sure CPPC Preferred Cores and Game Mode are enabled.

In RTSS, check CPU usage per core — if one is at 100%, that’s your simulation thread bottleneck.

Lower simulation-heavy settings:

Terrain Quality

Global Illumination

Animation/Physics effects

Turn off future frame rendering (in some cases it stabilises simulation latency).

If you’re streaming or have heavy background tasks, ensure nothing else is contending for CPU time.

🧾 Summary

✅ GPU and CPU render are fine.

⚠️ SIM thread bottleneck = game limited by simulation logic, not graphics.

🛠 Fix: reduce CPU load, experiment with DX mode, check core utilisation.

crackerjakr​ makes a good point about posting system specs to make sure RAM memory is in dual channel mode with EXPO/XMP memory overclocking is enabled.

Download HWiNFO and post a screenshot of System Summary if you wish us to take a look.

https://hwinfo.com
