When you arrive at Peak 15 on Noveria all character models (shepard, allies and enemies) become black polygons. Uninstalling and repairing the game doesn't work, anyone know a fix?

Thanks for the update. There's a bit of a workaround, it essentially involves turning off certain lighting in the affected sections. In your Windows go to My Documents/BioWare\Mass Effect\Config and open BIOInput.ini with notepad. Look for the [Engine.console] line and add the following text: ConsoleKey=Tilde Save and start the game. Once in-game turn on the console by pressing tilde (the key above Tab and below Esc) and type: viewmode unlit You can swap it back afterwards with: viewmode lit I know it's a little involved but I hope this helps.

Characters become black polygons | EA Forums

12 Replies

EA_David
Community Admin
9 years ago
@jariahxsynn Hey, it sounds like a rendering issue. I'm not sure why it would only show up a bit into the game.

Can you try a clean driver reinstall to start?

https://help.ea.com/en-za/help/pc/finding-devices-and-updating-drivers/
jariahxsynn
9 years ago
No good. I even went into my drivers dashboard to see if anything would change but nothing. I's really weird though, the area I'm in and one other location further in does this as well.
EA_David
Community Admin
9 years ago
Thanks for the update. There's a bit of a workaround, it essentially involves turning off certain lighting in the affected sections.

In your Windows go to My Documents/BioWare\Mass Effect\Config and open BIOInput.ini with notepad.
Look for the [Engine.console] line and add the following text: ConsoleKey=Tilde

Save and start the game.

Once in-game turn on the console by pressing tilde (the key above Tab and below Esc) and type: viewmode unlit

You can swap it back afterwards with: viewmode lit

I know it's a little involved but I hope this helps.
Fred_vdp
Hero+
9 years ago
This is a compatibility issue with the AMD FX processor lineup. The lighting at Peak 15 and on Ilos is handled by the CPU instead of the GPU, and the FX CPUs stopped supporting this particular method. I don't think AMD, BioWare or Demiurge ever commented on this, but AMD's FX CPUs came out after the game, so it looks like AMD is to blame.

The workaround David posted is the only way to get around this apart from swapping your motherboard and CPU.
jariahxsynn
9 years ago
I did as you said but but I can't open the command line with the tilde key. Perhaps I did something wrong somewhere? (I accepted it as the solution because I know it should work)
holger1405
Hero+
9 years ago
@jariahxsynn

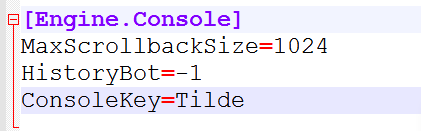

You ConsoleKey=Tilde entry in the "BioInput.ini" must look exactly like this: (the two other lines are irrelevant)

You did saved the "BioInput.ini"?

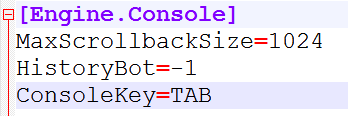

If you use a non US\English Keyboard use the "Tab" key instead.
jariahxsynn
9 years ago
Thanks alot, turns out I had the command in the wrong spot.
holger1405
Hero+
9 years ago
@jariahxsynn

You're welcome, have fun gaming.
Vellu78
9 years ago
Alternatively, you can use this mod to fix the issue (without having to disable lighting, which does look kinda ugly).:

http://www.nexusmods.com/masseffect/mods/71/?

Simple drag&drop install too. Adds other visual enhancements aswell.
Fred_vdp
Hero+
9 years ago
Update: The problem still occurs on the new AMD Ryzen CPUs.

https://www.reddit.com/r/masseffect/comments/5xz4fu/no_spoilers_fyi_about_amd_ryzen_and_mass_effect_1/

This thread also recommends the mod @Vellu78 linked to.
