@devilhavemercy That's exactly what I was looking for. The Sims 4 crashes in your dxdiag are breakpoint errors, which can have a few different causes. To start with, please make sure Sims 4 is always using your Nvidia GPU. Hit Windows key-i, select System > Display > Graphics settings, click Browse, find TS4_x64.exe, and set it to use the high-performance option. This is more reliable than the Nvidia Control Panel method.
If this alone doesn't help, please try playing in a clean boot:
https://support.microsoft.com/en-us/topic/how-to-perform-a-clean-boot-in-windows-da2f9573-6eec-00ad-2f8a-a97a1807f3dd
The one service to leave enabled is the EABackgroundService, which the EA App needs in order to run. Disable the rest as described.
When you reboot your computer, go through the Task Manager's background processes list shutting down any service that doesn't absolutely need to be running, for example anything from MSI Afterburner to RGB software might still be enabled. If you accidentally kill a critical process and it doesn't restart on its own, just reboot your computer again.
Don't open anything other than Sims 4 and the EA App while testing, not even a browser window.

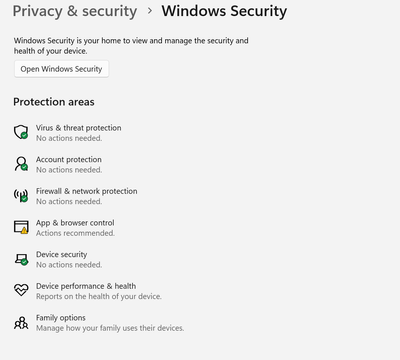

If that doesn't help either, please see whether Windows Defender's Controlled Folder Access is enabled, and if so, disable it temporarily, just long enough to test Sims 4.
https://crinrict.com/blog/2019/03/windows-10-defender-controlled-folder-access.html
